Level 3
Level 3 Commuter Ebike
Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3
Enhanced Security meets Advanced Technology

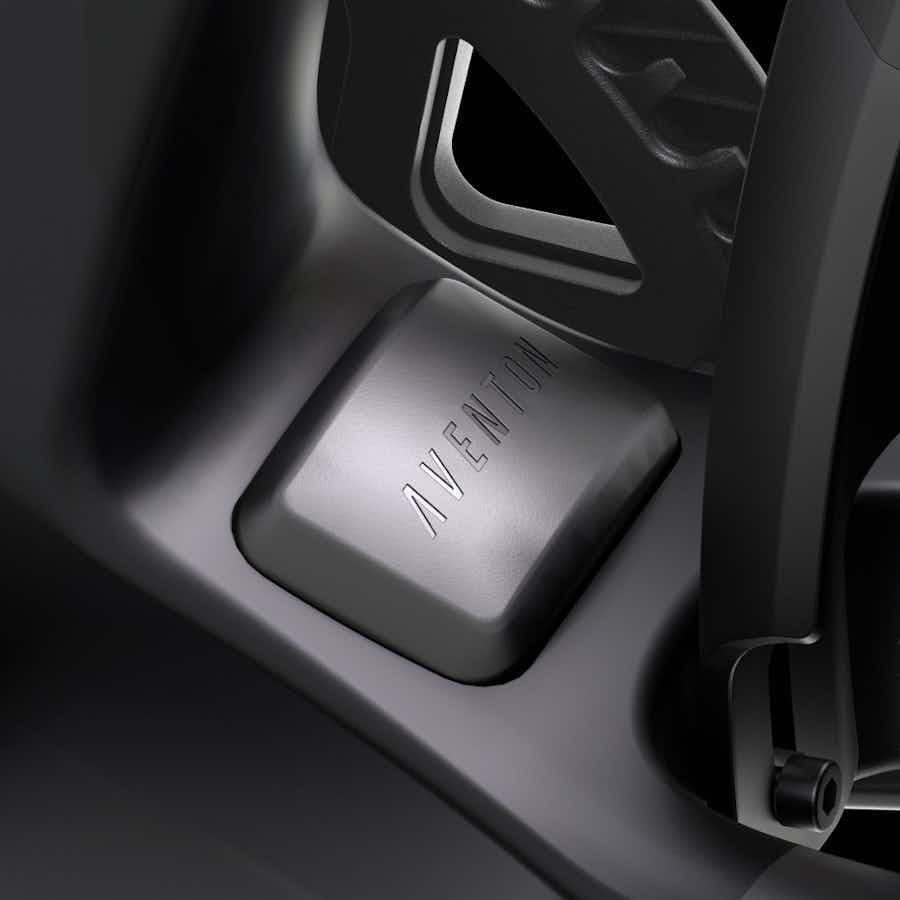

The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock†, Geofencing† and Passcode safeguards your Level 3 and deliver an ultimate peace of mind. When cruising, you can rely on GPS† tracking, 4G† connection and cloud synchronization to get your bike stats in real time.
Remote Lock and Geofencing
The smart remote locking† functionality lets you immobilize your bike right from the Aventon app. And the Geofencing† feature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control.
Startup Password and Keyless Battery
Customize your passcode and maximize your protection. Choose from up to six inputs and with the all-new Keyless Battery, there’s one less key on your ring, so you can just hop on and bop around.
Electronic Rear Wheel Lock
Easily activate a locking mechanism that restricts the rear wheel from rotating. This adds a layer of security when leaving your bike unattended.
Suspension Seatpost
The suspension seatpost with adjustable preload allows you to customize how your seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.
Ride Tune
Stay in perfect sync with your bike. Ride Tune lets you personalize your riding style via the Aventon App. Optimize and realize the full potential of your Level 3.
Over the Air Updates
Stay in the know while on the go. Enjoy optimal performance with intelligent over-the-air software updates through the Aventon app. No need to plug in or stop at a shop. Ride on.
Rack and Fenders
Pre-installed fenders will protect you from the elements, rain or shine, while an attached rear rack means you can transport all of your essentials, whether you're heading out for a picnic or heading home from work!
Pedal Assist and Throttle
Five levels of pedal assist mean you're in charge of how much or how little electric assist you get from your ebike, while a throttle will propel you at speeds up to 20 MPH, keeping you moving when pedaling is just an afterthought!
General Info
Model: Level 3 Commuter Ebike
Weight: 67lbs
Total Weight Limit: 300 lbs
Rider Height: 5'3" - 6'4"
Ebike Class: Class 2 Ebike
Water Resistance: IPX4
Range: Up to 70 Miles
Battery Safety Certifications: Certified to UL 2271
Safety Certifications: UL Safety Certified UL 2849
Ideal Use: Commuting
Pedal Assist: 3 Levels (with Ride Tune Customization)
Frameset
Frame: 6061 Aluminum, Gravity Cast Front Triangle
Fork: Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
Rear Spacing: 142mm
Fork Spacing: 110mm
Frame Style: Step-Over
Wheelset
Front Wheel: 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
Rear Wheel: 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
Tires: Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20
Ebike System
Motor: 36V, 500W (sustained), 864W (peak)
Motor Torque: 60Nm
Display: Aventon BC280
Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight: 8.7lbs
Controller: 36V, 24A
Throttle: Aventon LH Handlebar Mounted
Sensors: Double Sided Bottom Bracket Torque Sensor
Charger: 36V Output: 42V/ 4A
Charging time from 0% to 100%: 5 hours
Lights: Front and rear lights integrated
Speed: Class 2
Brakes
Front Brake: Magura AT-2 Hydraulic disc brake
Rear Brake: Magura AT-2 Hydraulic disc brake
Front Brake Rotor: Magura MDR-A 180mm 6 Bolt Rotor
Rear Brake Rotor: Magura MDR-A 180mm 6 Bolt Rotor
Drivetrain
Rear Derailleur: Shimano Altus RD-M310
Shifter: Shimano 8 Speed Trigger SL-M315-8R
Chain: 7/8 speed 120L
Cassette: 12-32T / 8 Speed Shimano CS HG200-8
Chainring:48T
Chainring BCD: 104
Crankset: 3pc, 170mm crank arm
Bottom Bracket: Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Pedals: 9/16" Composite Platform
Cockpit
Saddle: Aventon Saddle
Seatpost:30.9mm Aventon Suspension Seatpost with 50mm travel
Seatpost Clamp: 34.9mm
Handlebars: Aluminum 31.8mm, 680mm
Grips: Aventon Lock on grips
Headset: Sealed Bearing Headset
Included Accessories
Fenders: Included
Rear Rack: Included
Rear Rack Weight Limit: 60lbs
Technical Overview
The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.
