Abound LR
Abound LR Ebike
The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.

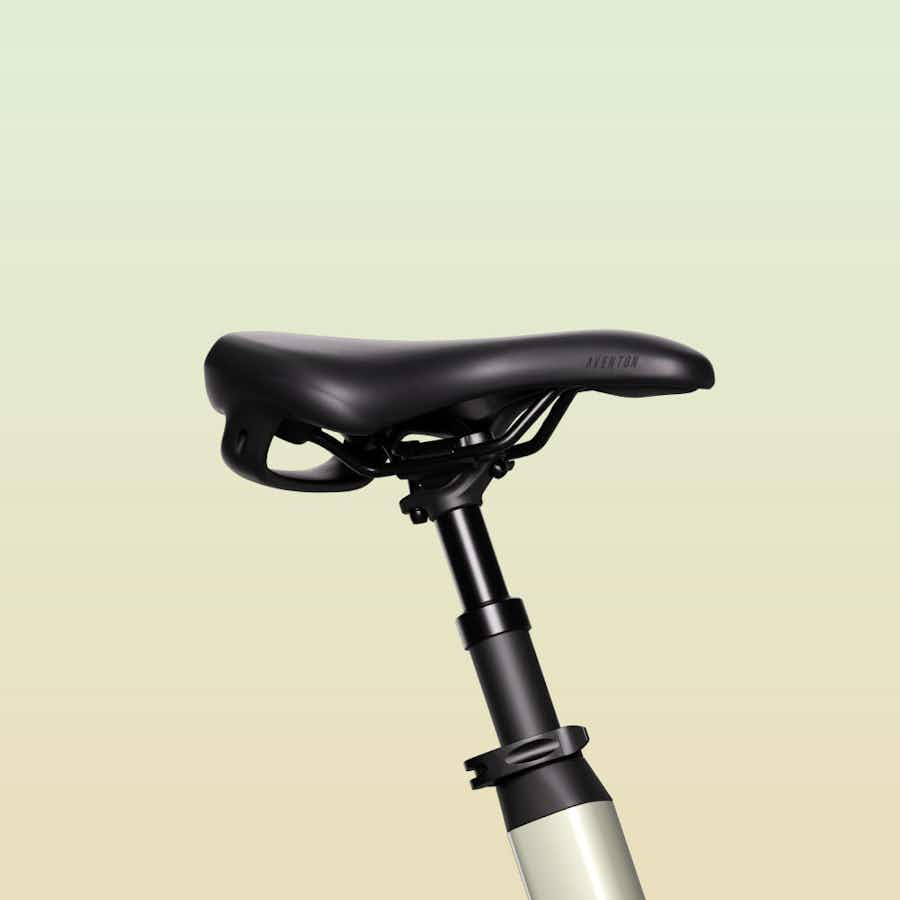

Suspension Seatpost
The suspension seatpost with adjustable preload allows you to customize how your seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.
Storage Bag with Lock
The lockable storage bag lets you store and protect the valuable items you might need to bring along for the long haul. Create your own 3 digit combo password to unlock the zippers and access your essentials.

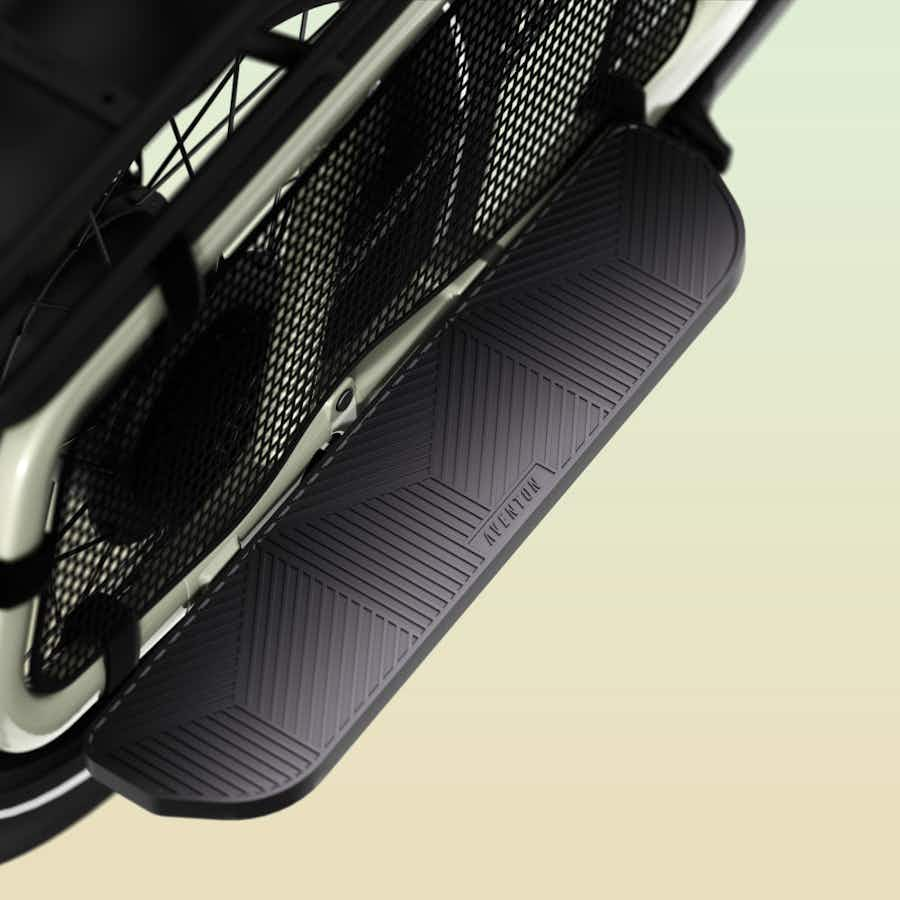

Footboards
Rest assured that your passengers have a place to rest their feet and ride comfortably out of harm's way.
Front Suspension
A suspension fork with 50mm of travel provides comfort for you and your cargo.

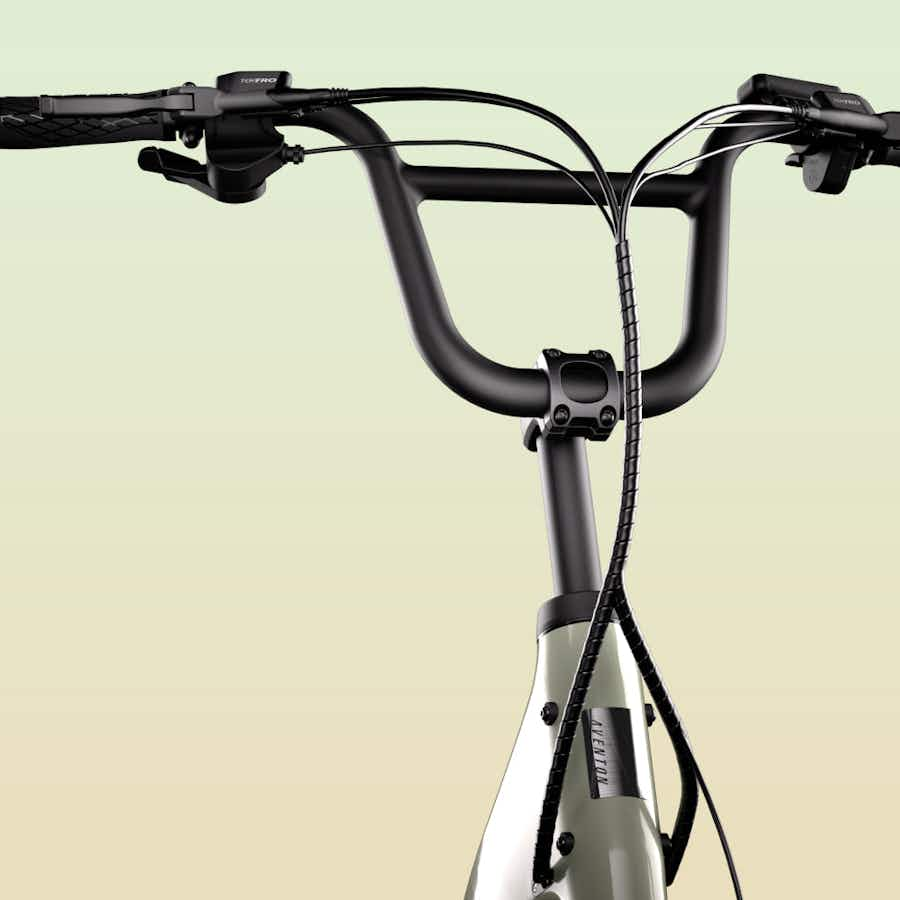

Adjustable Quill Stem & BMX Style Handlebars
140mm of vertical adjustment paired with stylish BMX handlebars make for a comfortable, customizable fit. The integrated quill stem and handlebar ensure you can confidently maneuver and transport cargo with confidence.
Remote Lock and Geofencing
The smart remote locking† functionality lets you immobilize your bike right from the Aventon app. And the Geofencing† feature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control.

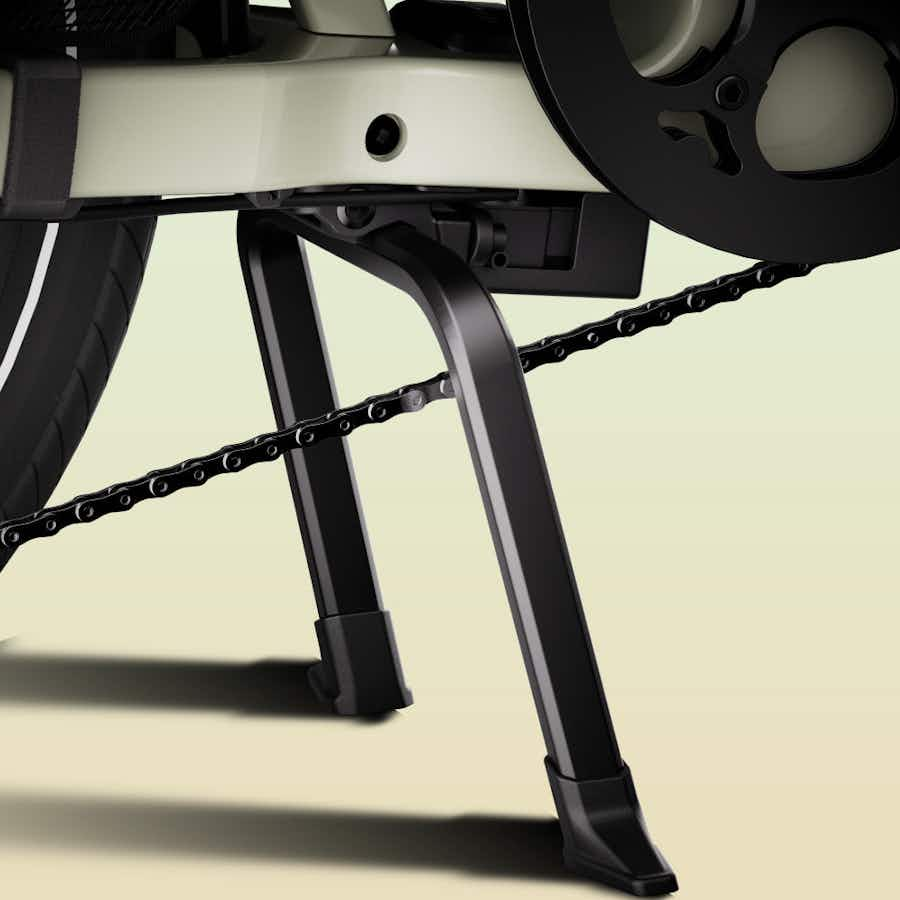

E-Lock Kickstand & Alarm
Quickly and easily activate a kickstand lock from your display or the Aventon app. Furthermore, whenever your bike is moved or tampered with, an alarm system will activate audio and visual alerts to deter theft.
Passcode and Keyless Battery
Create your own six input passcode using the control pads on the bike display. With a keyless battery system allowing you to remove your battery directly from your bike display, no need to keep track of another set of keys. All that's left to worry about is when you can ride next.
General Info
Model: Abound LR Ebike
Weight: 88lbs
Total Weight Limit: 440 lbs
Rider Height: 4'11" - 6'3"
Ebike Class: Class 2 Ebike
Water Resistance: IPX4
Range: Up to 60 miles
Battery Safety Certifications: Certified to UL 2271
Safety Certifications: UL and TUV Safety Certified UL 2849
Ideal Use: Cargo & Utility
Pedal Assist: 3 Levels (with Ride Tune Customization)
Frameset
Frame: Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
Fork: Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions
Rear Spacing: 175mm
Fork Spacing: 110mm
Frame Style: Step-Through
Wheelset
Front Wheel: Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve
Rear Wheel: Double Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve
Tires: 20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls
Ebike System
Motor: Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
Motor Torque: 80Nm
Display: Aventon BC147
Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight: 8.7lbs
Controller: 36V/33A
Throttle: Aventon LH Handlebar Mounted
Sensors: Double Sided Bottom Bracket Torque Sensor
Charger: 36V Output: 42V/ 4A
Charging time from 0% to 100%: 5 hours
Lights: Front and Rear Lights Integrated w/ Turn Signals
Speed: Class 2
Brakes
Front Brake: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Rear Brake: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Front Brake Rotor: 180mm 6 bolt
Rear Brake Rotor: 203mm 6-bolt
Drivetrain
Rear Derailleur: Shimano Altus RD-M310 8 Speed
Shifter: Shimano 8 Speed Trigger SL-M315-8R
Chain: 7/8 speed 154L
Cassette: 12-32T / 8 Speed Shimano CS HG200-8
Chainring: 52 tooth
Chainring BCD: 104
Crank: 3pc, 165mm crank arm
Bottom Bracket: Square Taper, Sealed, Dual-Sided Torque Sensor
Pedals: 9/16" Composite Platform
Cockpit
Saddle: Aventon Saddle w/ grab handle by Selle Royal
Seatpost: Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Seatpost Clamp: 34.9mm
Handlebars: BMX Style Aluminum 31.8mm, 720mm
Grips: Aventon Ergonomic Comfort lock on grips
Headset: H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs
Included Accessories
Fenders: Included
Rear Rack: Included
Rear Rack Weight Limit: 143 lbs
Technical Overview
The Abound LR ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I E-bike or throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your E-bike in light rain. It won't be harmed by spray from a wet road or raindrops. Your E-bike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your E-bike. *Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.*
